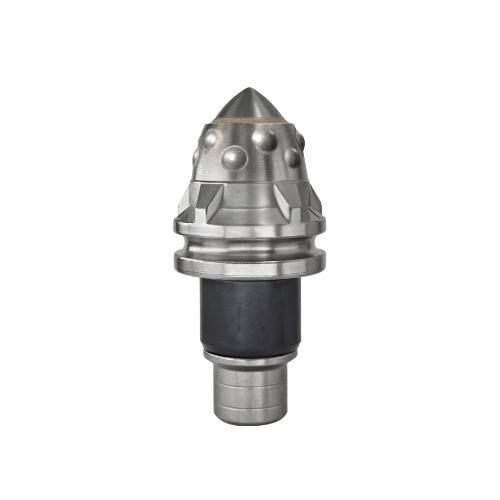

60-12T26K Bullet Teeth
Durable 60-12T26K bullet teeth for hard, abrasive rock. Low-cobalt tungsten carbide, vacuum welding, balanced rotor.
Description
Technical Parameters
| Blank Size | Main Alloy | Alloy Material | Alloy HRC Performance | Blank HRC Performance | Typical Strength Range |
| 30-60 | ∅ 26 | Tungsten-Cobalt Alloy | 69-70 | 46-48 | 40MPa-70MPa |
Applicable Formations
Suitable for limestone, conglomerate, red sandstone, slightly weathered argillaceous limestone, backfilled concrete, and highly abrasive strata that demand exceptional wear resistance from the pick body.
Related technology
Low Cobalt Extra Coarse Grain Tungsten Carbide Alloy
Diameter 26 mm, and the large alloy body is designed for hard rock. lt uses innovative materials to improve rock-breaking ability and extend service life compared to traditional alloys.
Low Cobalt Extra Coarse Grain Tungsten Carbide Beans
Made of wear-resistant raw material. 12 hard alloy beans, strong impact resistance, protect the tooth body
Ultra-High Vacuum Precision Welding
Achieve a high-strength connection between the alloy and the blank, avoid carbide precipitation and weld weakening, and improve the anti-stripping performance of the pick under impact load
Dynamically Balanced Rotor
Five spiral grooves and five bosses on the outer edge facilitate the rotation of the teeth and reduce eccentric wear of the tooth body.
High-Strength Tough Shank
The body is made by warm extrusion forging, integrating precision heat treatment technology, with higher density and wear resistance, and the anti-dropping retaining spring is standard in the factory.
