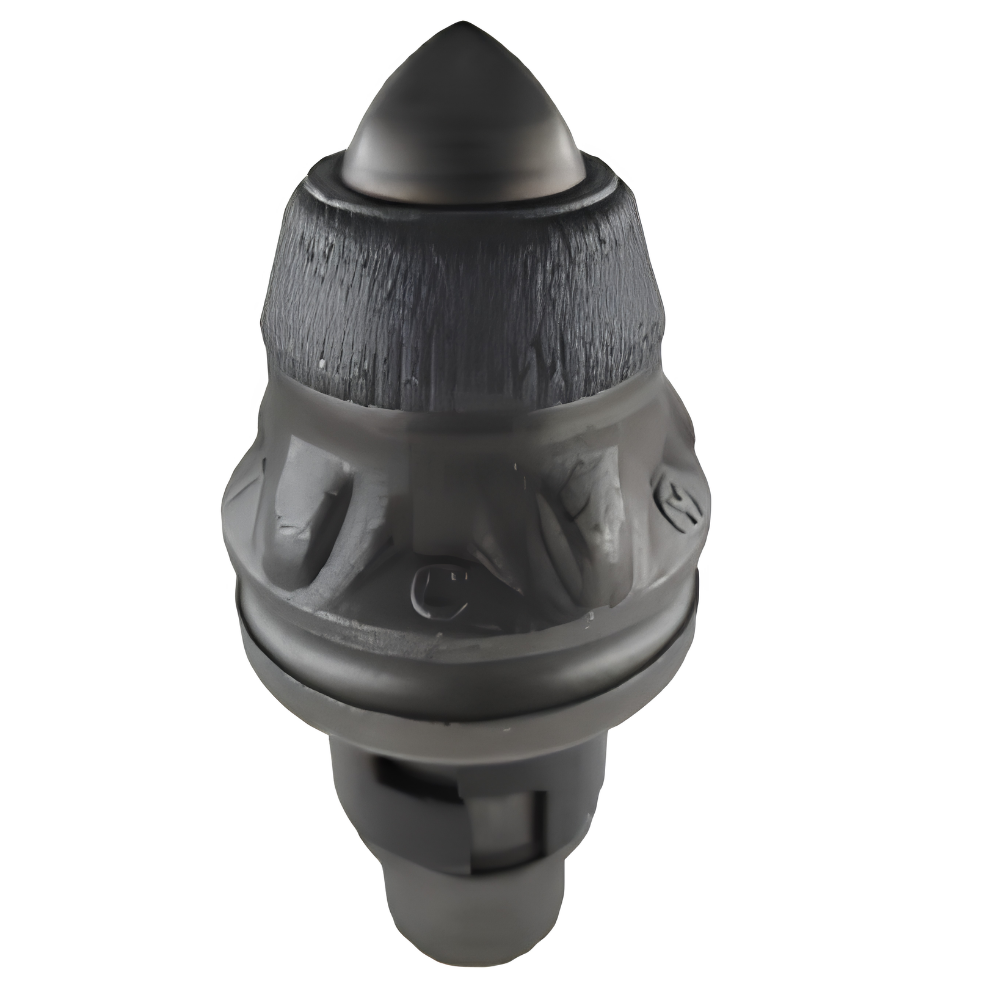

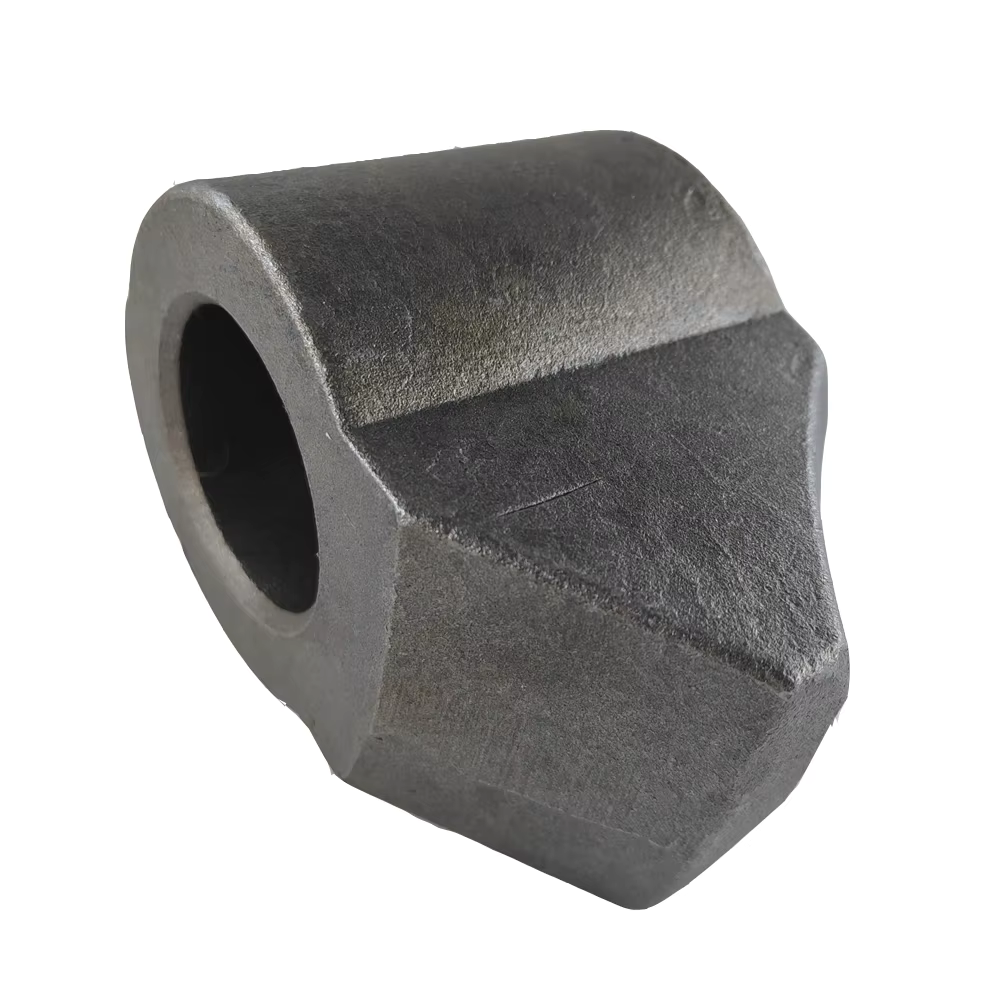

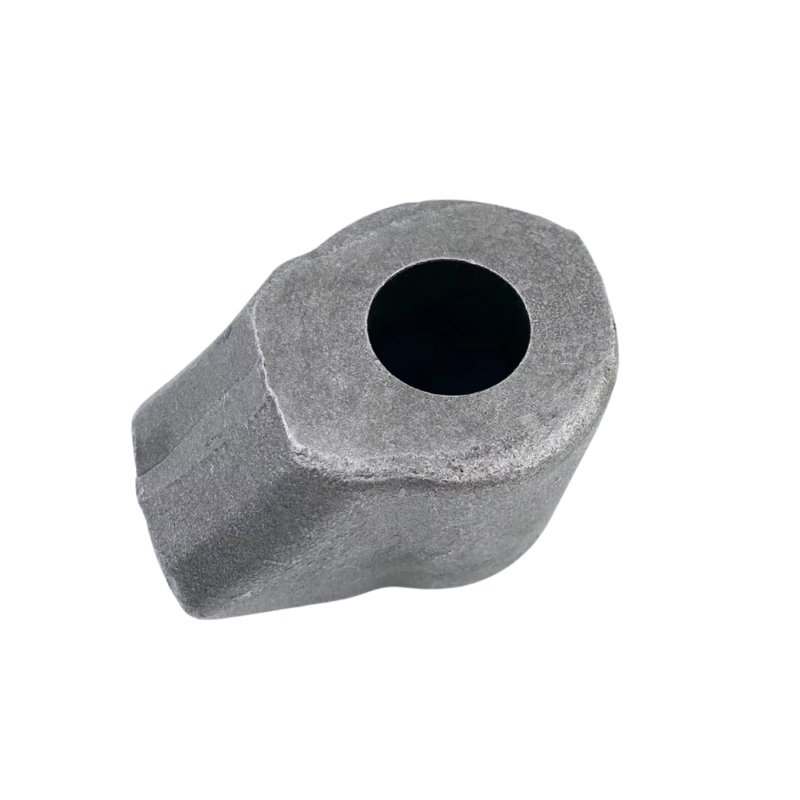

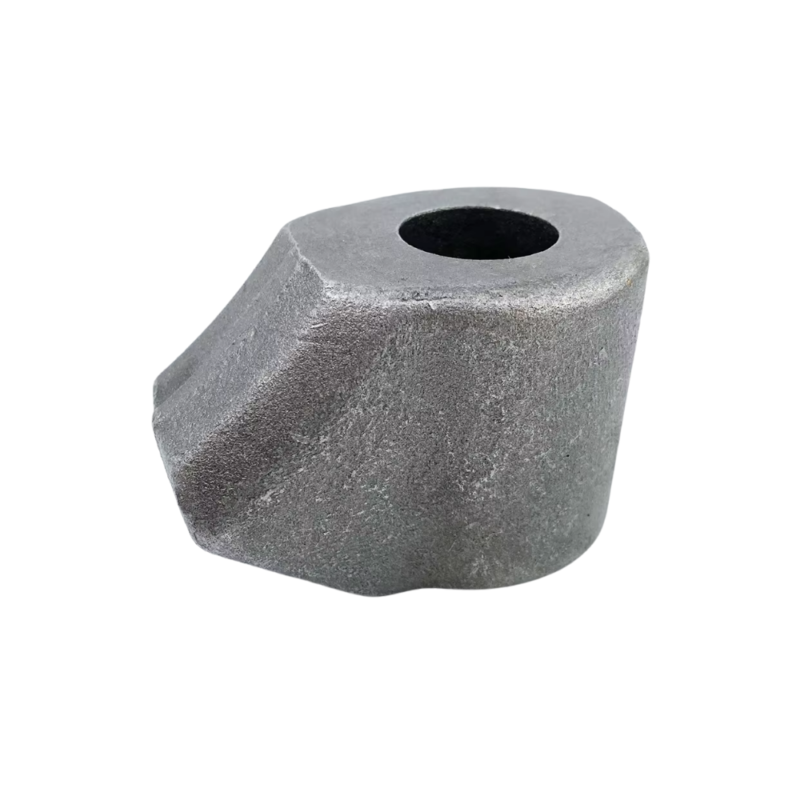

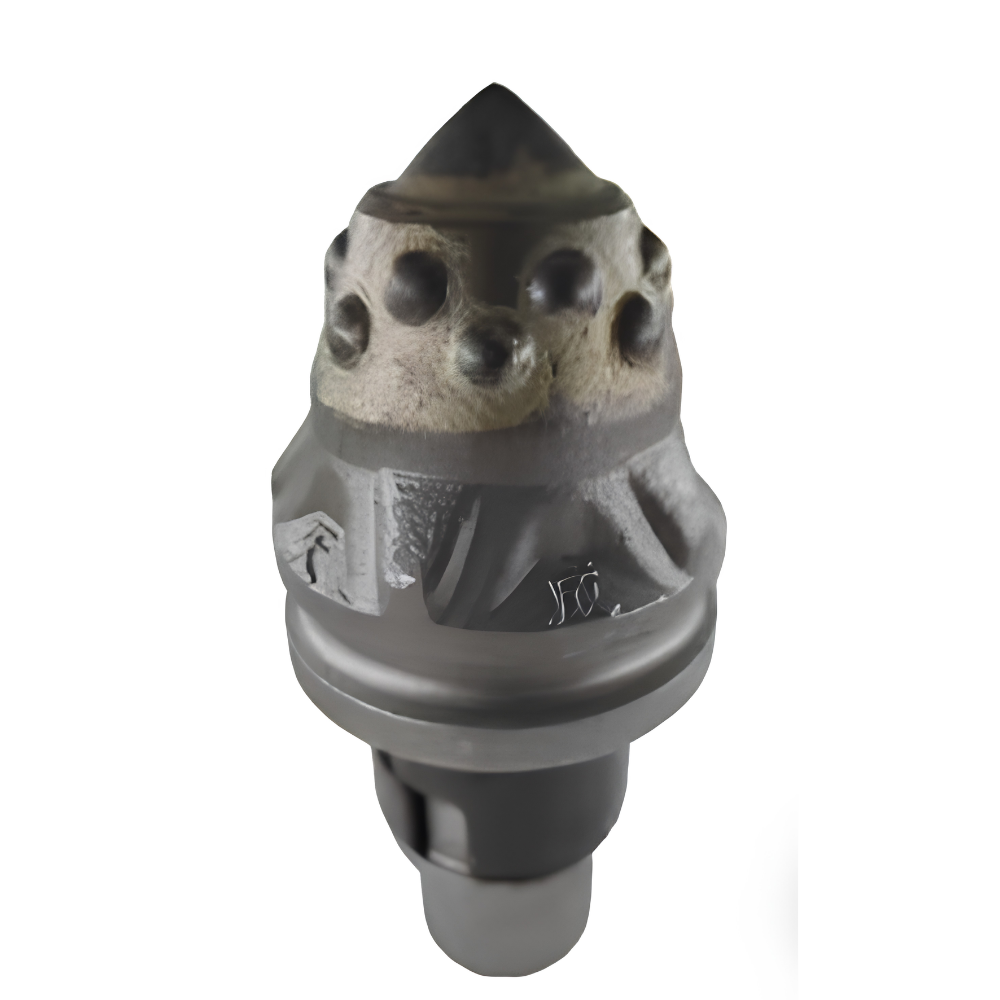

B43H BHR38 Foundatioin Carbide Bullet Pick Teeth Bit Holder for Piling Rig

Kennametal code

DS01 DS02 DS03 DS04 DS05

Betek code

B47K22H B47K19H B47K17.5H BKH28 BKH40 BKH41 BKH47 BKH81

Bauer code

C403 C402

2K

Tungsten Cobalt Carbide

1.15kg

strongly weathered limestone, strongly weathered dolomite,
dense sandstone and strongly weathered silicified limestone, etc.

600Kpa ~ 20Mpa

KRA

Tungsten Cobalt Carbide

1.2kg

mudstone, sandstone, etc.

<30MPa

8TA

Tungsten Cobalt Carbide

1.22kg

high-density sandstone, mudstone, etc.

800Kpa~5Mpa

12T

Tungsten Cobalt Carbide

1.2kg

high-density sandstone, mid-weathered granite, etc.

2000Kpa~10Mpa

3055-6L

Tungsten Cobalt Carbide

1.2kg

dense sandstone, pebbles, red sandstone and large particle boulders, etc.

800Kpa ~1000Kpa

9N

Tungsten Cobalt Carbide

1.3kg

high-density sandstone, samll pepple, mid-weathered granite, mid-weathered limestone, etc.

2000Kpa~40Mpa

TR2

Tungsten Cobalt Carbide

1.4kg

dense sandstone, moderately weathered granite, moderately weathered silicified limestone and weakly weathered quartzite

2000Kpa~20Mpa

ST2

Tungsten Cobalt Carbide

1.4kg

weakly weathered granite, marble, weakly weathered silicified limestone, silicified sandstone, basalt, etc.

20MPa~50Mpa
