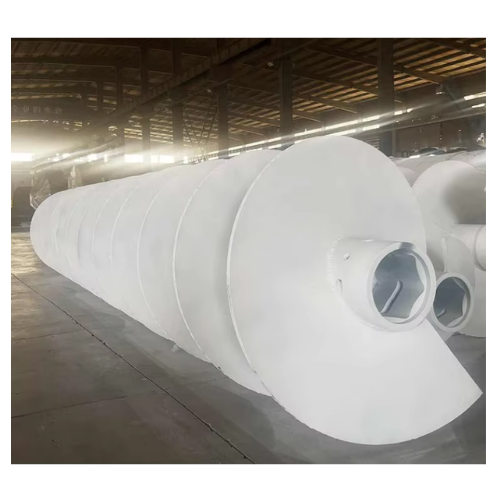

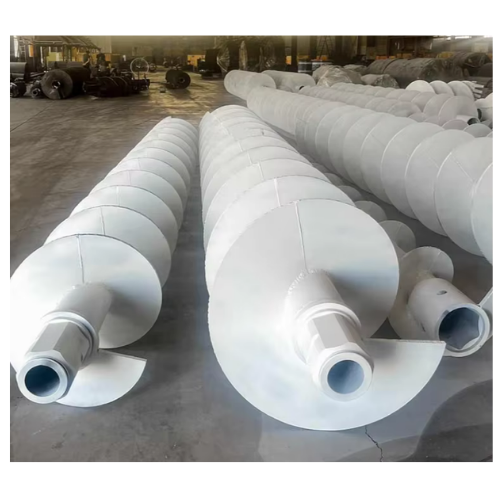

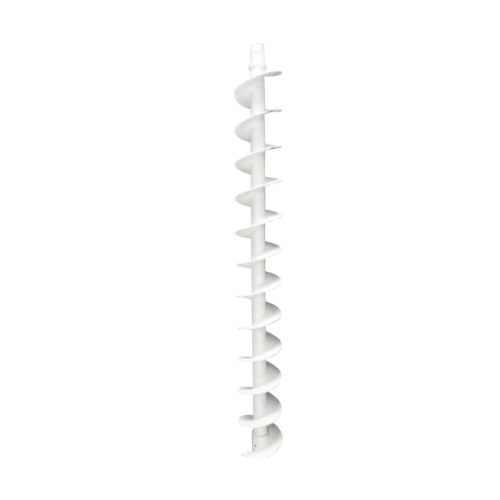

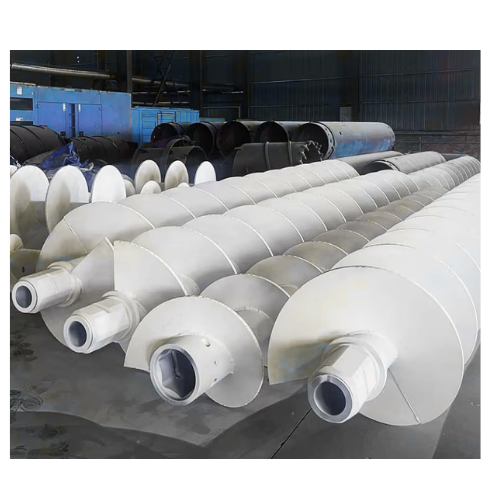

OEM CFA Continuous Flight Auger With Rock Head for Pile Foundation Rotary Drilling Rigs
Description
Product Description
Specification
| Diameter (mm) | Inner Diameter (mm) | Center Pipe (mm) | Pitch (mm) | Flight Thickness (mm) | Hexagonal Joint Size |
|---|---|---|---|---|---|
| 300 | 125 | 146×20 | 300 | 20 | HEX150 |
| 400 | 125 | 180×25 | 300 | 20 | HEX180 |
| 400 | 100 | 146×20 | 400 | 20 | HEX150 |
| 400 | 125 | 180×25 | 400 | 20 | HEX180 |
| 400 | 125 | 219×25 | 400 | 20 | HEX200 |
| 500 | 100 | 180×20 | 500 | 20 | HEX150 |
| 500 | 125 | 180×25 | 500 | 20 | HEX180 |
| 500 | 125 | 219×25 | 500 | 20 | HEX200 |
| 500 | 125 | 273×25 | 500 | 20 | HEX220 |
| 600 | 100 | 180×20 | 500 | 20 | HEX150 |
| 600 | 125 | 180×25 | 500 | 20 | HEX180 |
| 600 | 125 | 219×25 | 500 | 20 | HEX200 |
| 600 | 125 | 273×25 | 500 | 20 | HEX220 |
| 700 | 125 | 180×25 | 500 | 20 | HEX180 |
| 700 | 125 | 219×25 | 500 | 20 | HEX200 |
| 700 | 125 | 273×25 | 500 | 20 | HEX220 |
| 800 | 125 | 180×25 | 500 | 20 | HEX180 |
| 800 | 125 | 219×25 | 500 | 20 | HEX200 |
| 800 | 125 | 273×25 | 500 | 20 | HEX220 |
| 900 | 125 | 180×25 | 500 | 20 | HEX180 |
| 900 | 125 | 245×25 | 500 | 20 | HEX200 |
| 900 | 125 | 273×25 | 500 | 20 | HEX220 |
| 1000 | 125 | 180×25 | 500 | 20 | HEX180 |
| 1000 | 125 | 245×25 | 500 | 20 | HEX200 |
| 1000 | 125 | 273×25 | 500 | 20 | HEX220 |
Special sizes available upon request – based on minimum order quantities.
Production line

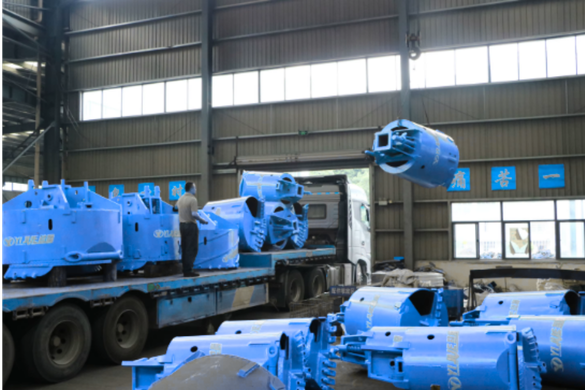

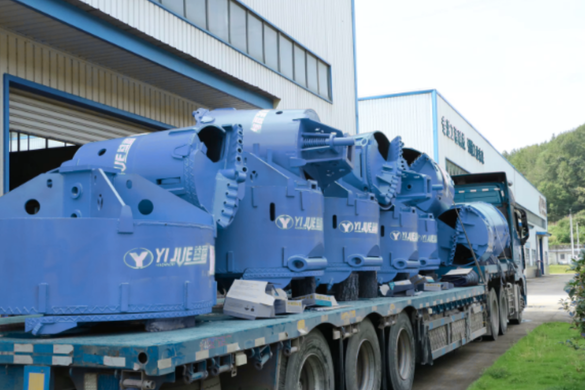

Packing & Delivery
