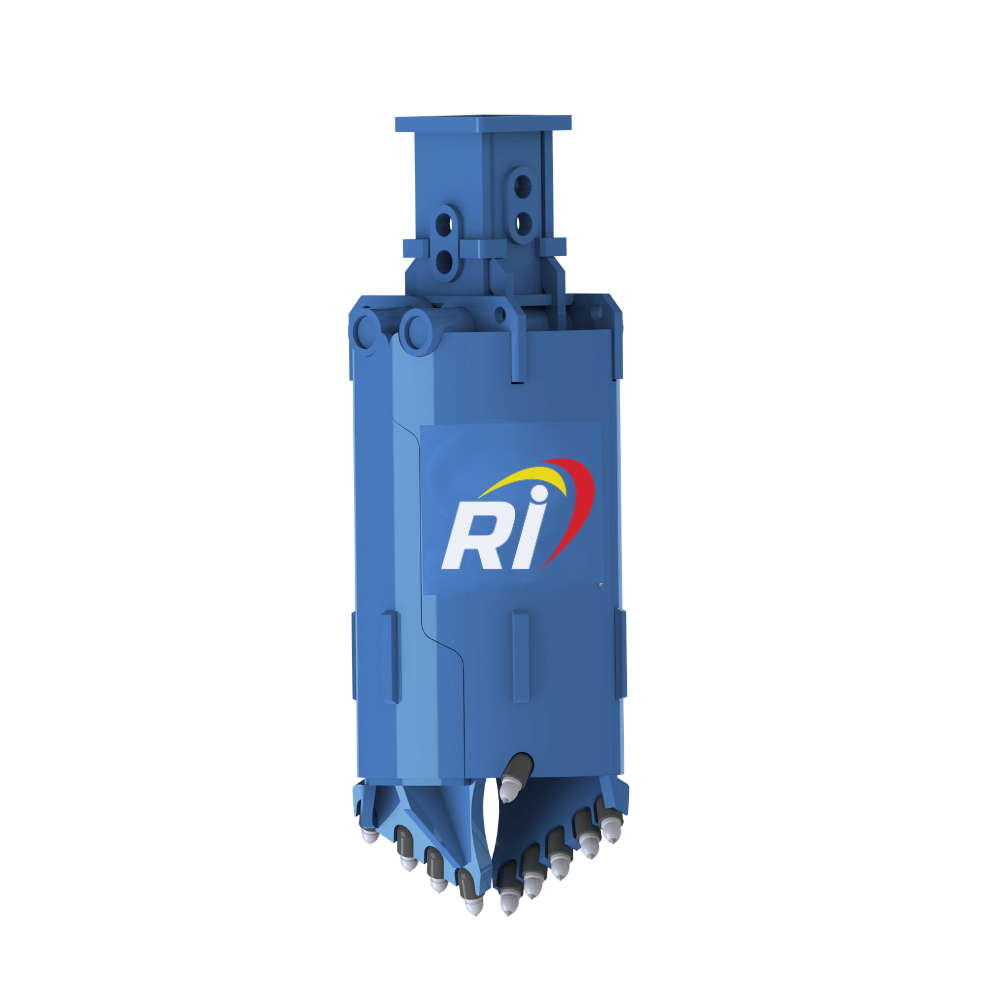

Open Type Drilling Bucket With Drilling Teeth for Soil/Rock
- open type bucket
- applicable layers: clay, silt, highly weathered rock
Description
Product Description
- Large inlet of soil,open shell design, easy to dump spoil so increases the drilling efficiency;
- Super strength structure for shell, guide plate,etc,increase the life cycle of bucket;
- Guide strips arranged on the surface of bucket can avoid drilling tool sucked by the pressure;
- Applicable layers: Clay,silt, highly weathered rock
Model List
|
Cutting Dia
|
Shell HIT
|
Shell OD
|
Shell THK
|
Stiffening Ring THK
|
Stiffening Ring HIT
|
Teeth NO.
|
Weight
|
|
&600
|
1200
|
500
|
25
|
40
|
300
|
7
|
815
|
|
&700
|
1200
|
700
|
25
|
40
|
300
|
9
|
1237
|
|
&900
|
1200
|
800
|
25
|
40
|
300
|
10
|
1500
|
|
&1000
|
1200
|
900
|
25
|
40
|
300
|
11
|
1700
|
|
&1200
|
1200
|
1100
|
25
|
40
|
300
|
13
|
2140
|
|
Remark: All measurements are in millimeters, weight in kilograms.
|
|||||||
Customizable Items
- Cutting DIA, Custom: design various cutting diameter based on demand,like&950 &1050 etc.;
- Teeth Custom: equipped different teeth,like bullet teeth, flat teeth according to different working condition;
- Shell HIT.Custom: design as demand, prolong or shortten, increase of efficiency by drilling more;
- Key Component Reinforce Custom: strengthen the key component to extend life cycle;
- Kelly Box Custom: custom kelly box size based on the kelly bar, like 150*150, 200*200 250*250 etc;
Product Details

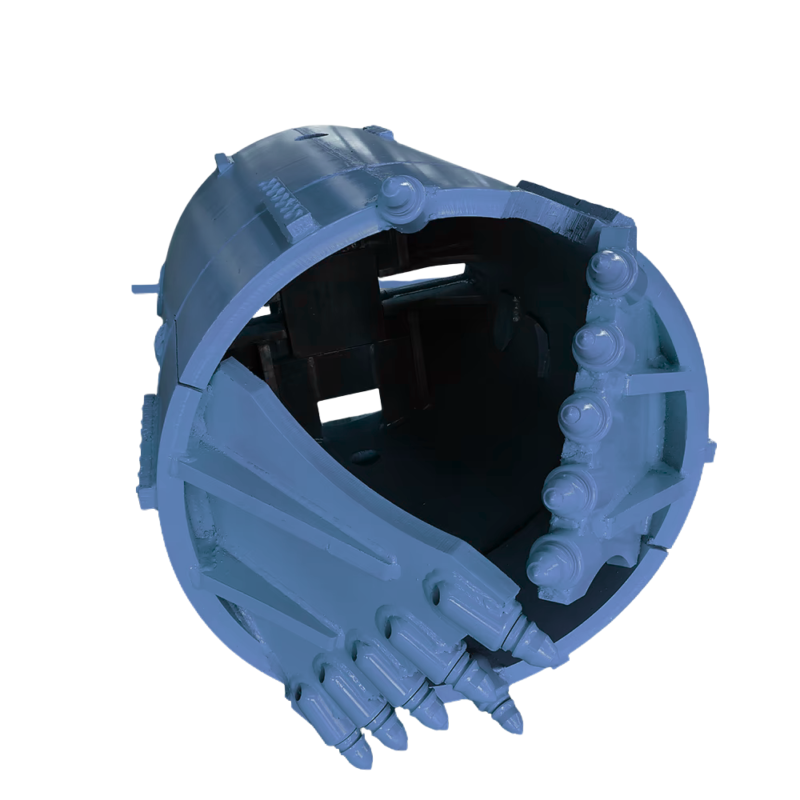

Drilling Bucket Tooth Ring with Conical and Straight Teeth

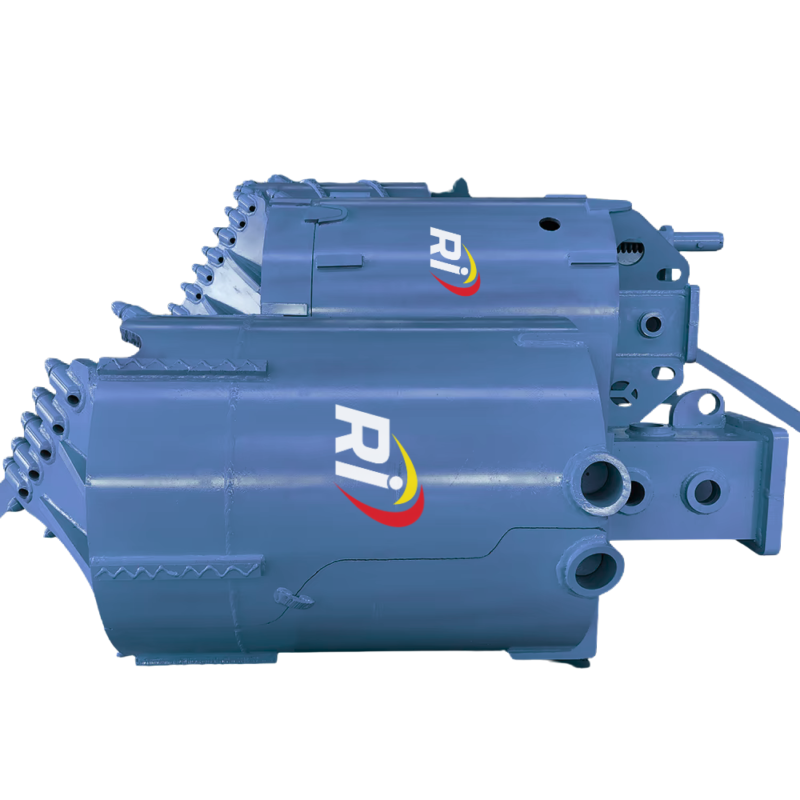

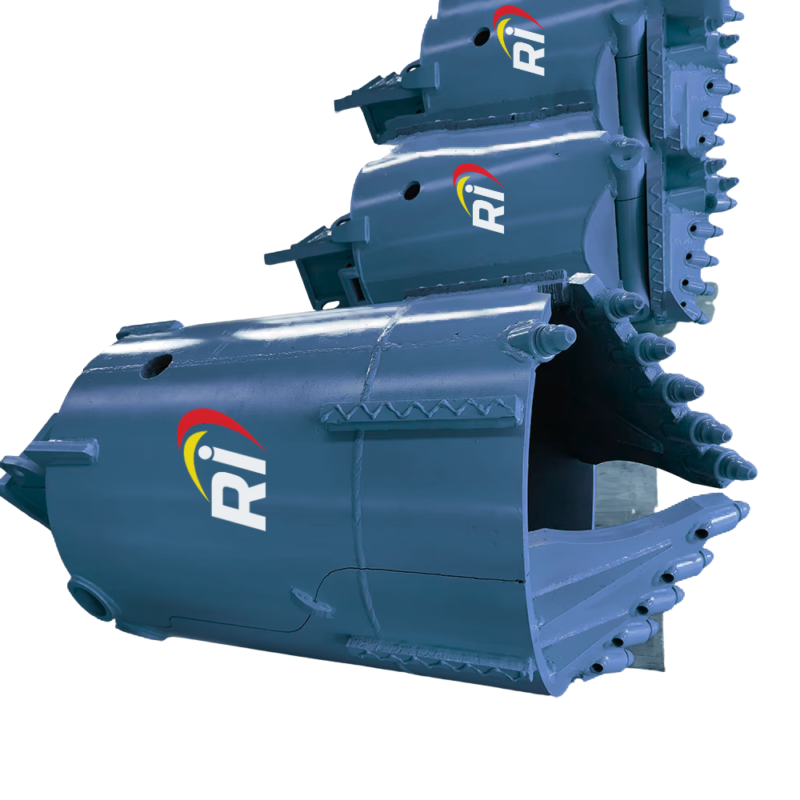

Open Type Drilling Bucket with Rock Drilling Teeth
Reinforced Mounting Structure of Drilling Bucket
Product Application
Rotary drilling rig in foundation construction
Rotary drilling rig in foundation construction
On-site rock and soil drilling operation
On-site rock and soil drilling operation
Drilling bucket working inside bored pile
Drilling bucket working inside bored pile
Packing and Delivery
Frequently Asked Questions?
1. What is an open type drilling bucket used for?
An open type drilling bucket with drilling teeth is designed for efficient excavation of clay, silt, weathered rock, and mixed soil conditions. It is commonly used in foundation drilling, piling, trenching, and ground reinforcement projects.
2. What types of soil and rock can this bucket handle?
This drilling bucket is suitable for a wide range of ground conditions, including soft to medium-hard soils such as clay and silt, as well as highly weathered rock. Its reinforced drilling teeth provide strong penetration and reduced wear.
3. What machines is this drilling bucket compatible with?
This open type drilling bucket is compatible with excavators, backhoes, and other carriers within the specified weight range. Customers should check the machine’s hydraulic flow and pressure to ensure optimum performance.
4. What are the advantages of the drilling teeth design?
The drilling teeth enhance cutting efficiency, reduce drilling time, and improve material removal. Durable, replaceable teeth also help extend service life and reduce maintenance costs in harsh working environments.
5. How should I maintain the drilling bucket for better performance?
Regularly inspect the drilling teeth and weld joints, ensure proper lubrication of pivot points, check tooth tightness, and remove debris after use. Periodic maintenance helps maximize service life and maintain consistent drilling quality.
